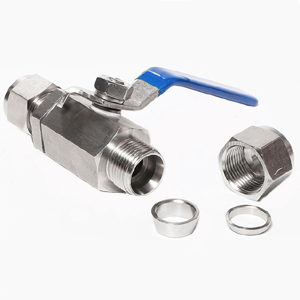

Product Name: 304 / 316 stainless steel double ferrule ball valve

Product model: QGY1

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle material: 304, 201

Handle color: red, blue, yellow

Product Description:

304 / 316 stainless steel double ferrule ball valve has the characteristics of pressure corrosion, firm connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation, etc. Widely used in food, pharmaceutical, petrochemical, electric power, water treatment, metallurgy and other industrial pipelines and civil automatic control industries.

Nominal pressure: 2.5MPa, 16MPa.

Applicable temperature: ≤ 150 ℃.

Applicable media: oil, water, gas and other non corrosive or corrosive media.

Manufacturing materials: 20#, 1Cr18Ni9Ti, 304, 316, 316L.

Piping: Ф 4～ Ф 42 ordinary grade precision seamless steel pipe.

Taper pipe thread: ZG, R, G, Pt, NPT, etc.

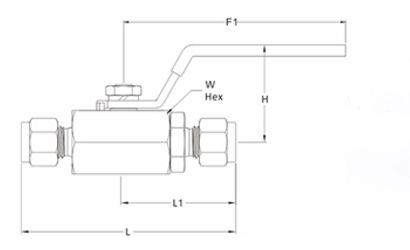

Structural drawing of 304 / 316 stainless steel double ferrule ball valve:

304 / 316 stainless steel double ferrule ball valve connection size:

Components	Material	standard
handle	WCB silver-plated gray
Top wire	SCM435	DIN916-1980
Stem	316、304	GB/T1220-1992
Gasket	316、304	GB/T1220-1992
Sealing ring	RPTFE	HG2-535
Guide seat	316、304	GB/T1220-1992
Sealing cap	RPTFE	HG2-535
Back mother	316、304	GB/T1220-1992
Valve body	316、304	GB/T1220-1992
Front card holder	316L、304	GB/T1220-1992
Rear card sleeve	316、304	GB/T1220-1992
Single card holder	316、304	GB/T1220-1992
Nuts	316、304	GB/T1220-1992

304 / 316 stainless steel double ferrule ball valve connection size:

Port Size	Orifice in (mm)	Cv	Dimensions(mm)
			L	L1	W	H	F1
6mm	0.281 (7.1)	2.3	2.63 (66.8)	1.50 (38.1)	3/4 (19.05)	1.18 (30)	3.22 (82.0)
8mm
10mm			2.87 (72.9)	2.87 (72.9)	7/8 (22.23)
12mm	0.354 (9.0)	6.4	3.15 (8.0.8)	1.83 (46.5)	15/16 (24.0)	1.54 (39)	3.22 (82.0)
1/4〞	0.281 (7.1)	2.3	2.63 (66.8)	1.50 (38.1)	3/4 (19.05)	1.18 (30)	3.22 (82.0)
5/16〞
3/8〞			2.87 (72.9)	2.87 (72.9)	7/8 (22.23)
5/8〞	0.354 (9.0)	6.4	3.15 (80.8)	1.83 (46.5)	15/16 (24.0)	1.54 (39)	3.22 (82.0)
